Description

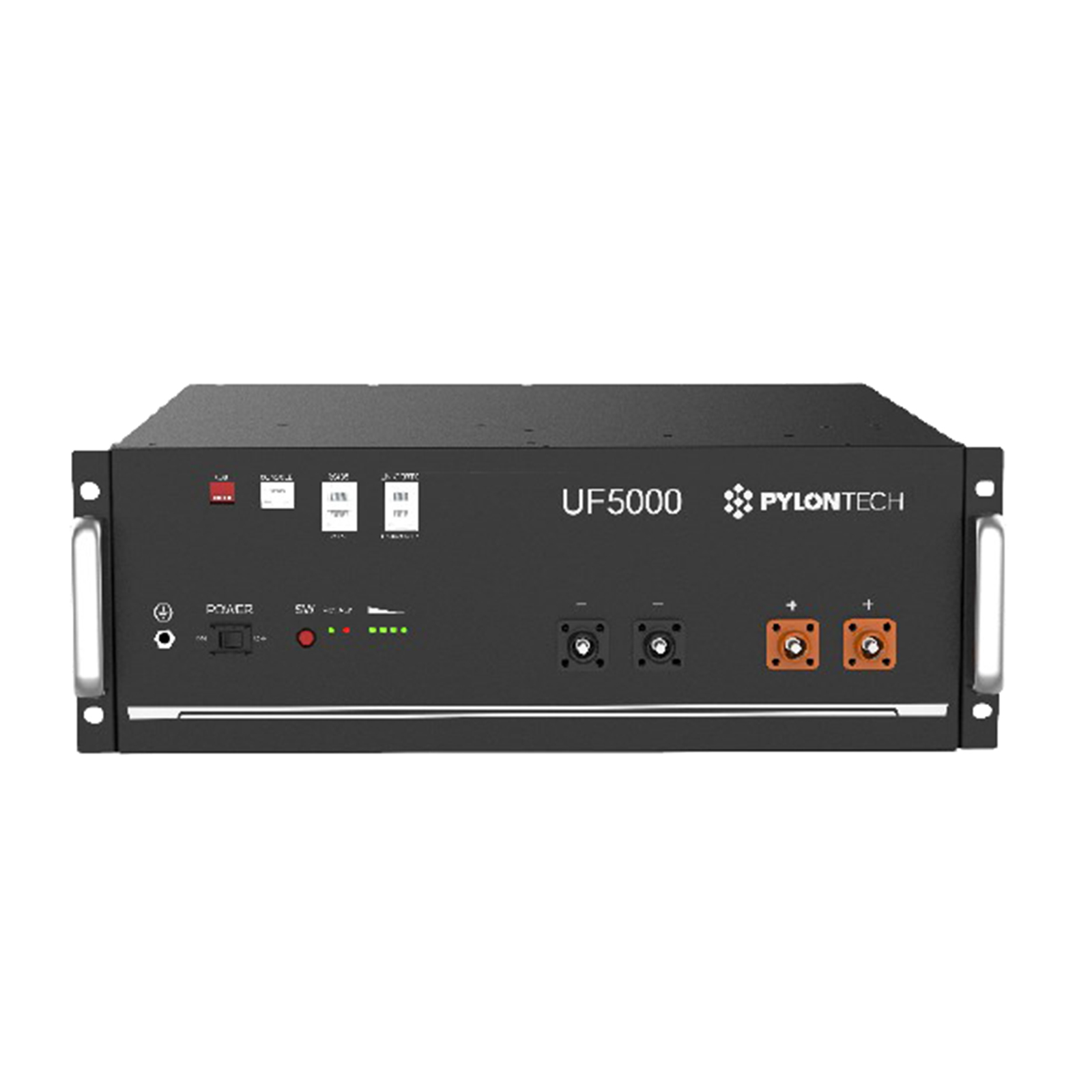

BATTERY – Unlock Power and Efficiency with the Pylontech UF5000 – Your Ultimate Li-Ion Battery Solution.
Introducing the Pylontech UF5000, a cutting-edge 5.12 kWh Li-Ion Battery designed to redefine your approach to energy storage. Pylontech has once again revolutionized the game with this innovative battery, featuring a modular design for effortless expansion, higher usable capacity, and intelligent Battery Management System (BMS) protection.
Nominal Voltage (Vdc)51.2Nominal Capacity (KWh)5.12Usable Capacity (KWh)4.864Dimension (Mm)442×452.6x161Weight (Kg)42Discharge Voltage (Vdc)45.6-56.8Charge Voltage (Vdc)56-56.8Recommended Charge/Discharge Current (A)100Max, Continuous Charge/Discharge Current (A)100Peak Charge/Discharge Current (A)105-109@15 Min / 120-200@15 SecCommunication PortRS485,CANConfiguration (Max In 1 Battery Group)20 PcsWorking Temperature-10°C->55°CStorage Temperature-20°C->60°CShort Current/ Duration Time<2000A/1msCooling TypeNaturalIP RatingIP20Humidity5%-95% (RH) No CondensationAltitude (M)<4000Design Life15 Years 25 °CCycle Life>6,000 25 °C
